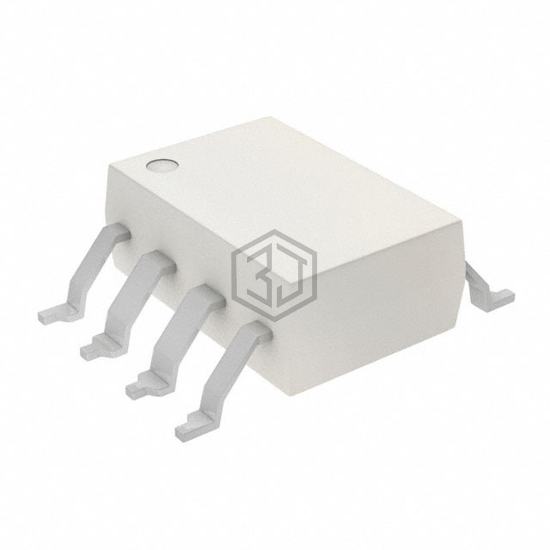

OPTOISO 5KV 1CH OPEN COLL 8SMD
6N137TSVM is a Optoisolators - Logic Output manufactured by onsemi. OPTOISO 5KV 1CH OPEN COLL 8SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 100°C, voltage - supply 4.5V ~ 5.5V, package / case 8-SMD, Gull Wing.
In Stock: 3,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Channels | 1 |
| Inputs - Side 1/Side 2 | 1/0 |
| Voltage - Isolation | 5000Vrms |
| Common Mode Transient Immunity (Min) | 10kV/µs (Typ) |
| Input Type | DC |
| Output Type | Open Collector |
| Current - Output / Channel | 50 mA |
| Data Rate | 10Mbps |
| Propagation Delay tpLH / tpHL (Max) | 75ns, 75ns |
| Rise / Fall Time (Typ) | 30ns, 10ns |
| Voltage - Forward (Vf) (Typ) | 1.45V |
| Current - DC Forward (If) (Max) | 50mA |
| Voltage - Supply | 4.5V ~ 5.5V |
| Operating Temperature | -40°C ~ 100°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SMD, Gull Wing |
| Supplier Device Package | 8-SMD |
Submit your RFQ for 6N137TSVM and get a quote within 24 hours.
