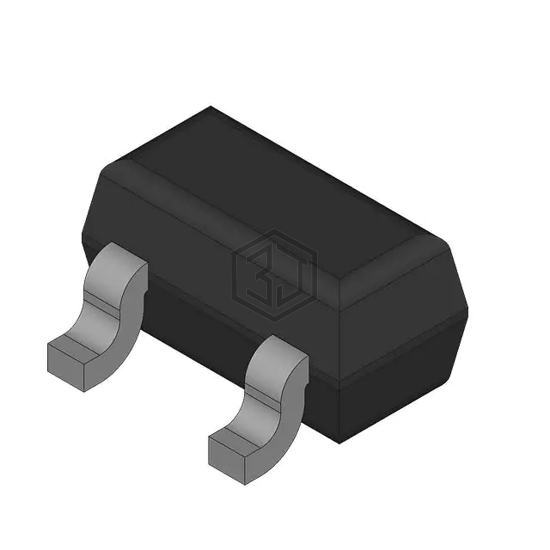

5LP01S - P-CHANNEL SMALL SIGNAL
5LP01S-TL-E is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. 5LP01S - P-CHANNEL SMALL SIGNAL. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case SC-75, SOT-416.
In Stock: 51,473
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 50 V |
| Current - Continuous Drain (Id) @ 25°C | 70mA (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.5V, 4V |
| Rds On (Max) @ Id, Vgs | 23Ohm @ 40mA, 4V |
| Vgs(th) (Max) @ Id | - |
| Gate Charge (Qg) (Max) @ Vgs | 1.4 nC @ 10 V |
| Vgs (Max) | ±10V |
| Input Capacitance (Ciss) (Max) @ Vds | 7400 pF @ 10 V |
| FET Feature | - |
| Power Dissipation (Max) | 150mW (Ta) |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | SMCP |
| Package / Case | SC-75, SOT-416 |
Submit your RFQ for 5LP01S-TL-E and get a quote within 24 hours.
