MOSFET N-CH 30V 150MA SC70/MCPH3

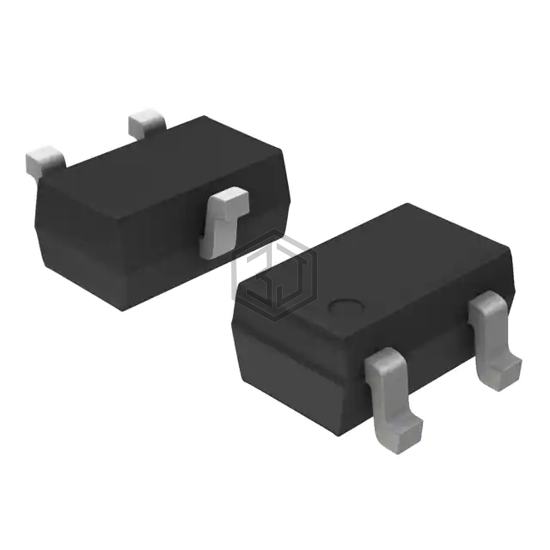

3LN01M-TL-E is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 30V 150MA SC70/MCPH3. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case SC-70, SOT-323.
In Stock: 9,000
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 150mA (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.5V, 4V |
| Rds On (Max) @ Id, Vgs | 3.7Ohm @ 80mA, 4V |
| Vgs(th) (Max) @ Id | 1.3V @ 100µA |
| Gate Charge (Qg) (Max) @ Vgs | 1.58 nC @ 10 V |
| Vgs (Max) | ±10V |
| Input Capacitance (Ciss) (Max) @ Vds | 7 pF @ 10 V |
| FET Feature | - |
| Power Dissipation (Max) | 150mW (Ta) |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | SC-70 / MCP3 |
| Package / Case | SC-70, SOT-323 |
