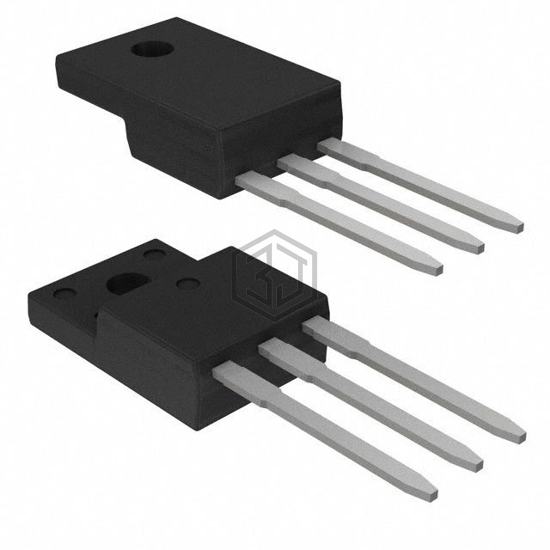

MOSFET N-CH 600V 9.2A TO220F-3FS
2SK4087LS-1E is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 600V 9.2A TO220F-3FS. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case TO-220-3 Full Pack.
In Stock: 10,906
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 600 V |
| Current - Continuous Drain (Id) @ 25°C | 9.2A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 610mOhm @ 7A, 10V |
| Vgs(th) (Max) @ Id | - |
| Gate Charge (Qg) (Max) @ Vgs | 46 nC @ 10 V |
| Vgs (Max) | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 1200 pF @ 30 V |
| FET Feature | - |
| Power Dissipation (Max) | 2W (Ta), 40W (Tc) |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-220F-3FS |
| Package / Case | TO-220-3 Full Pack |
Submit your RFQ for 2SK4087LS-1E and get a quote within 24 hours.
