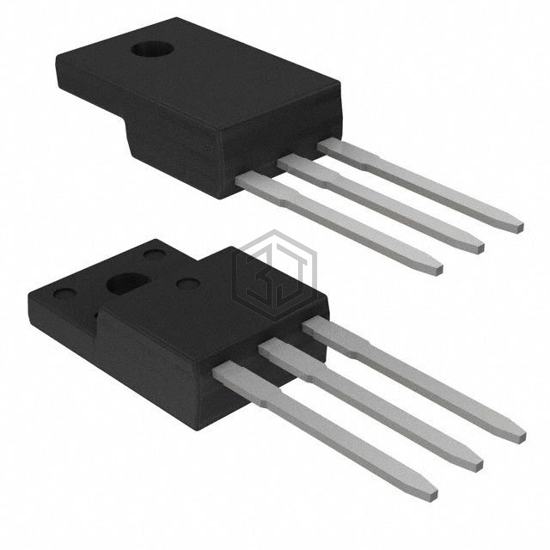

MOSFET N-CH 100V 20A TO220F-3SG
2SK3707-1E is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 100V 20A TO220F-3SG. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case TO-220-3 Full Pack.
In Stock: 721
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 100 V |
| Current - Continuous Drain (Id) @ 25°C | 20A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 4V, 10V |
| Rds On (Max) @ Id, Vgs | 60mOhm @ 10A, 10V |
| Vgs(th) (Max) @ Id | - |
| Gate Charge (Qg) (Max) @ Vgs | 44 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 2150 pF @ 20 V |
| FET Feature | - |
| Power Dissipation (Max) | 2W (Ta), 25W (Tc) |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-220F-3SG |
| Package / Case | TO-220-3 Full Pack |
Submit your RFQ for 2SK3707-1E and get a quote within 24 hours.
