TRANS NPN 20V 5A TP

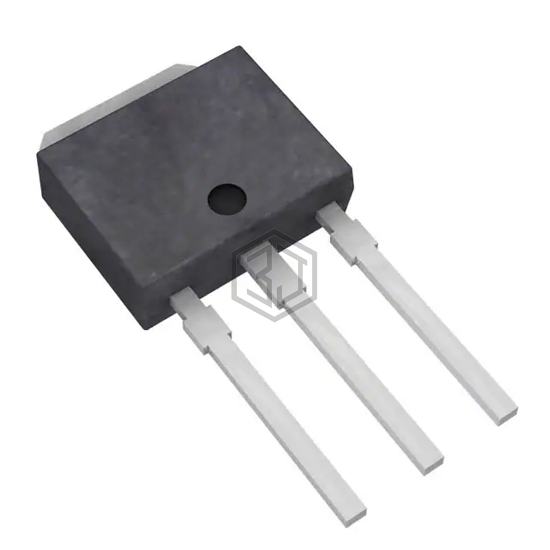

2SD1805G-E is a Transistors - Bipolar (BJT) - Single manufactured by onsemi. TRANS NPN 20V 5A TP. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case TO-251-3 Short Leads, IPak, TO-251AA, current - collector (ic) (max) 5 A.
In Stock: 23,281
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Transistor Type | NPN |
| Current - Collector (Ic) (Max) | 5 A |
| Voltage - Collector Emitter Breakdown (Max) | 20 V |
| Vce Saturation (Max) @ Ib, Ic | 500mV @ 60mA, 3A |
| Current - Collector Cutoff (Max) | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 280 @ 500mA, 2V |
| Power - Max | 1 W |
| Frequency - Transition | 120MHz |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-251-3 Short Leads, IPak, TO-251AA |
| Supplier Device Package | TP |
Submit your RFQ for 2SD1805G-E and get a quote within 24 hours.
