TRANS NPN 50V 5A TP

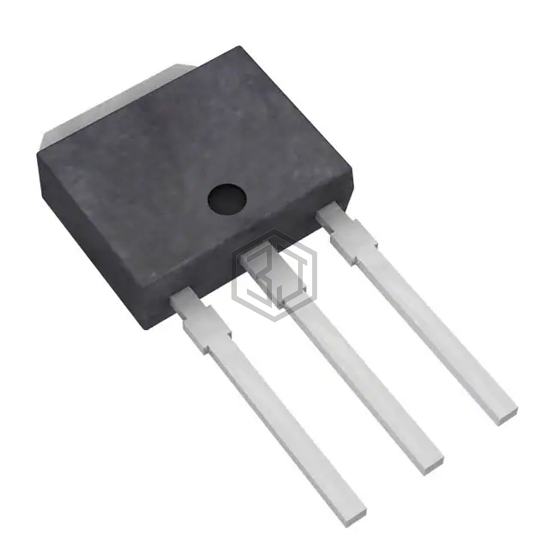

2SD1803T-E is a Transistors - Bipolar (BJT) - Single manufactured by onsemi. TRANS NPN 50V 5A TP. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case TO-251-3 Short Leads, IPak, TO-251AA, current - collector (ic) (max) 5 A.
In Stock: 403
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Transistor Type | NPN |
| Current - Collector (Ic) (Max) | 5 A |
| Voltage - Collector Emitter Breakdown (Max) | 50 V |
| Vce Saturation (Max) @ Ib, Ic | 400mV @ 150mA, 3A |
| Current - Collector Cutoff (Max) | 1µA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 200 @ 500mA, 2V |
| Power - Max | 1 W |
| Frequency - Transition | 180MHz |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-251-3 Short Leads, IPak, TO-251AA |
| Supplier Device Package | TP |
Submit your RFQ for 2SD1803T-E and get a quote within 24 hours.
