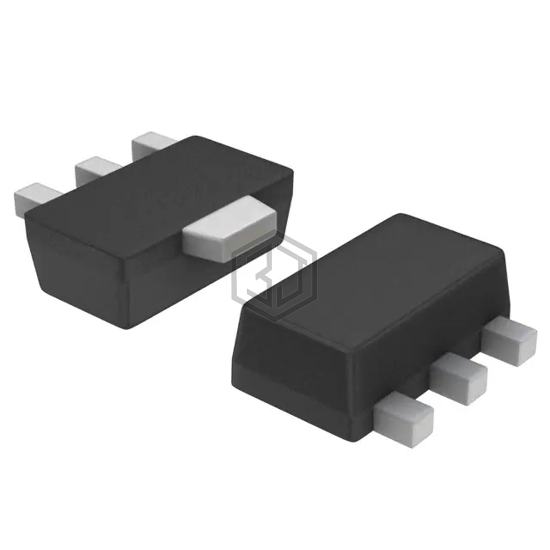

TRANS NPN 50V 7A SOT89/PCP-1
2SC5569-TD-E is a Transistors - Bipolar (BJT) - Single manufactured by onsemi. TRANS NPN 50V 7A SOT89/PCP-1. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case TO-243AA, current - collector (ic) (max) 7 A.
In Stock: 11,961
| Attribute | Value |
|---|---|
| Product Status | Active |
| Transistor Type | NPN |
| Current - Collector (Ic) (Max) | 7 A |
| Voltage - Collector Emitter Breakdown (Max) | 50 V |
| Vce Saturation (Max) @ Ib, Ic | 240mV @ 175mA, 3.5A |
| Current - Collector Cutoff (Max) | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 200 @ 500mA, 2V |
| Power - Max | 1.3 W |
| Frequency - Transition | 330MHz |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-243AA |
| Supplier Device Package | SOT-89/PCP-1 |
Submit your RFQ for 2SC5569-TD-E and get a quote within 24 hours.
