TRANS PNP 15V 0.7A 3CP

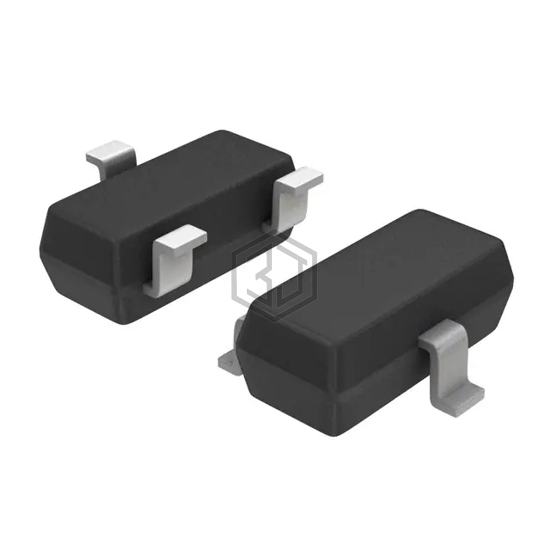

2SB815-7-TB-E is a Transistors - Bipolar (BJT) - Single manufactured by onsemi. TRANS PNP 15V 0.7A 3CP. Key specifications: mounting type Surface Mount, operating temperature 125°C (TJ), package / case TO-236-3, SC-59, SOT-23-3, current - collector (ic) (max) 700 mA.
In Stock: 2,760
| Attribute | Value |
|---|---|
| Product Status | Active |
| Transistor Type | PNP |
| Current - Collector (Ic) (Max) | 700 mA |
| Voltage - Collector Emitter Breakdown (Max) | 15 V |
| Vce Saturation (Max) @ Ib, Ic | 80mV @ 10mA, 100mA |
| Current - Collector Cutoff (Max) | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 300 @ 50mA, 2V |
| Power - Max | 200 mW |
| Frequency - Transition | 250MHz |
| Operating Temperature | 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | 3-CP |
Submit your RFQ for 2SB815-7-TB-E and get a quote within 24 hours.
