TRANS PNP 80V 50A TO204

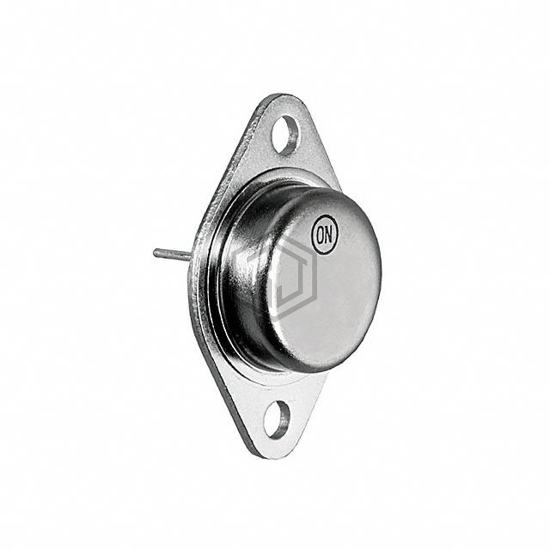

2N5684G is a Transistors - Bipolar (BJT) - Single manufactured by onsemi. TRANS PNP 80V 50A TO204. Key specifications: mounting type Through Hole, operating temperature -65°C ~ 200°C (TJ), package / case TO-204AE, current - collector (ic) (max) 50 A.
In Stock: 100
| Attribute | Value |
|---|---|
| Product Status | Active |
| Transistor Type | PNP |
| Current - Collector (Ic) (Max) | 50 A |
| Voltage - Collector Emitter Breakdown (Max) | 80 V |
| Vce Saturation (Max) @ Ib, Ic | 5V @ 10A, 50A |
| Current - Collector Cutoff (Max) | 1mA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 15 @ 25A, 2V |
| Power - Max | 300 W |
| Frequency - Transition | 2MHz |
| Operating Temperature | -65°C ~ 200°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-204AE |
| Supplier Device Package | TO-204 (TO-3) |
Submit your RFQ for 2N5684G and get a quote within 24 hours.
