TRANS NPN 60V 15A TO204

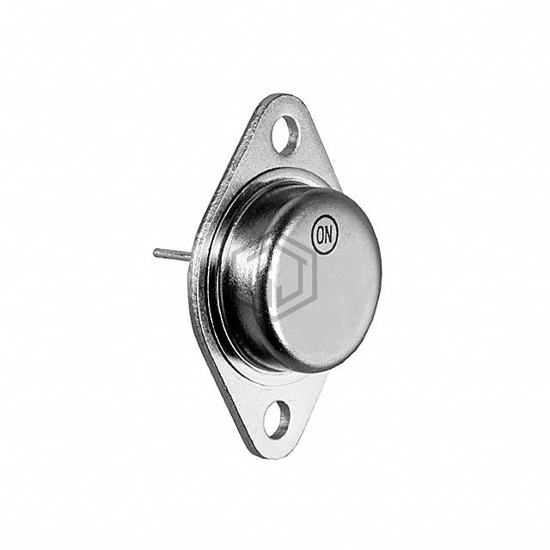

2N3055AG is a Transistors - Bipolar (BJT) - Single manufactured by onsemi. TRANS NPN 60V 15A TO204. Key specifications: mounting type Through Hole, operating temperature -65°C ~ 200°C (TJ), package / case TO-204AA, TO-3, current - collector (ic) (max) 15 A.
In Stock: 149
| Attribute | Value |
|---|---|
| Product Status | Active |
| Transistor Type | NPN |
| Current - Collector (Ic) (Max) | 15 A |
| Voltage - Collector Emitter Breakdown (Max) | 60 V |
| Vce Saturation (Max) @ Ib, Ic | 5V @ 7A, 15A |
| Current - Collector Cutoff (Max) | 700µA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 10 @ 4A, 2V |
| Power - Max | 115 W |
| Frequency - Transition | 6MHz |
| Operating Temperature | -65°C ~ 200°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-204AA, TO-3 |
| Supplier Device Package | TO-204 (TO-3) |
Submit your RFQ for 2N3055AG and get a quote within 24 hours.
