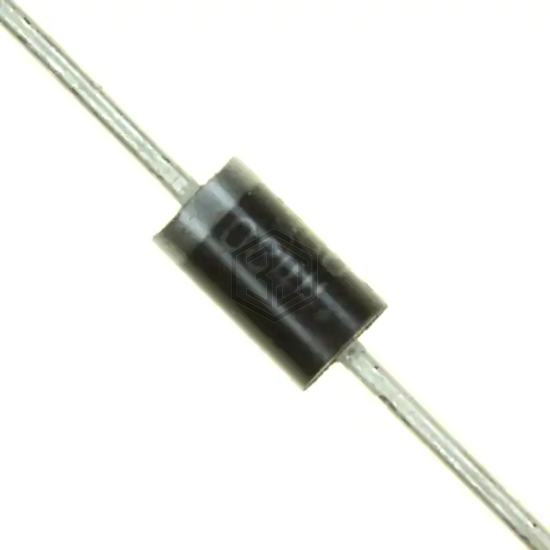

1N5820G
DIODE SCHOTTKY 20V 3A DO201AD
1N5820G is a Diodes - Rectifiers - Single manufactured by onsemi. DIODE SCHOTTKY 20V 3A DO201AD. Key specifications: mounting type Through Hole, package / case DO-201AA, DO-27, Axial.
In Stock: 8,250
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Diode Type | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 20 V |
| Current - Average Rectified (Io) | 3A |
| Voltage - Forward (Vf) (Max) @ If | 475 mV @ 3 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - |
| Current - Reverse Leakage @ Vr | 2 mA @ 20 V |
| Capacitance @ Vr, F | - |
| Mounting Type | Through Hole |
| Package / Case | DO-201AA, DO-27, Axial |
| Supplier Device Package | Axial |
| Operating Temperature - Junction | -65°C ~ 125°C |
Frequently Asked Questions
1N5820G is a Diodes - Rectifiers - Single manufactured by onsemi. DIODE SCHOTTKY 20V 3A DO201AD
The mounting type of 1N5820G is Through Hole.
The package type of 1N5820G is DO-201AA, DO-27, Axial.
