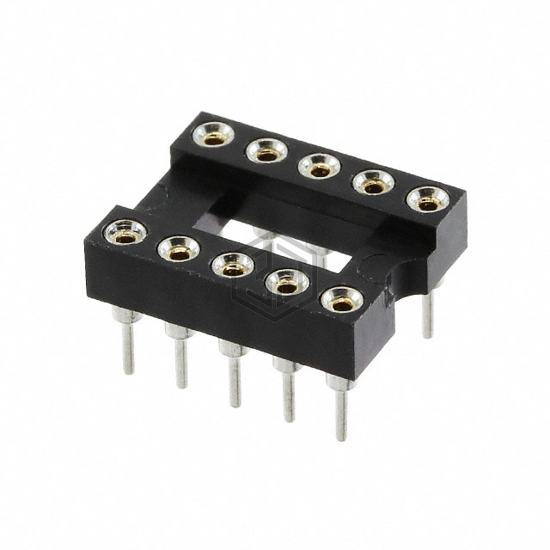

CONN IC DIP SOCKET 10POS GOLD
SA103000 is a Sockets for ICs, Transistors manufactured by On Shore Technology Inc.. CONN IC DIP SOCKET 10POS GOLD. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, housing material Thermoplastic, Polyester, Glass Filled, termination Solder.
In Stock: 9,844
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | DIP, 0.3" (7.62mm) Row Spacing |
| Number of Positions or Pins (Grid) | 10 (2 x 5) |
| Pitch - Mating | 0.100" (2.54mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Material - Mating | Beryllium Copper |
| Mounting Type | Through Hole |
| Features | Open Frame |
| Termination | Solder |
| Pitch - Post | 0.100" (2.54mm) |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Post | 200.0µin (5.08µm) |
| Contact Material - Post | Brass |
| Housing Material | Thermoplastic, Polyester, Glass Filled |
| Operating Temperature | -40°C ~ 105°C |
Submit your RFQ for SA103000 and get a quote within 24 hours.
