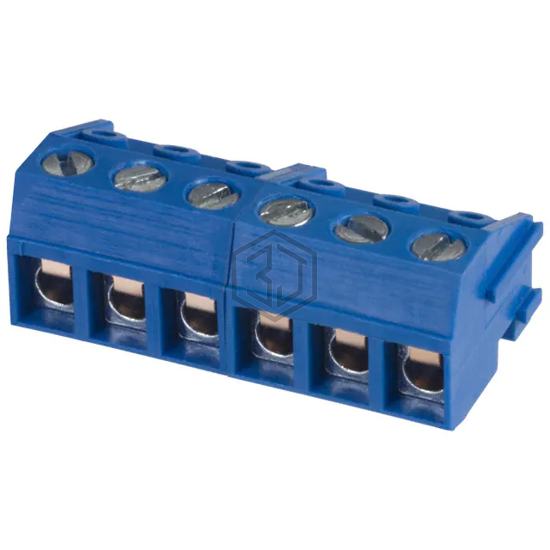

TERM BLOCK PLUG 6POS 90DEG 5MM
OSTTH060160 is a Terminal Blocks - Headers, Plugs and Sockets manufactured by On Shore Technology Inc.. TERM BLOCK PLUG 6POS 90DEG 5MM. Key specifications: mounting type Free Hanging (In-Line), operating temperature -40°C ~ 115°C, color Blue, termination style Screw.
In Stock: 180
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Plug for Unshrouded Header |
| Number of Positions | 6 |
| Positions Per Level | 6 |
| Number of Levels | 1 |
| Pitch | 0.197" (5.00mm) |
| Header Orientation | - |
| Plug Wire Entry | - |
| Termination Style | Screw |
| Mounting Type | Free Hanging (In-Line) |
| Current - IEC | - |
| Voltage - IEC | - |
| Current - UL | - |
| Voltage - UL | 300 V |
| Wire Gauge or Range - AWG | 14-22 AWG |
| Wire Gauge or Range - mm² | 0.34-1.5mm² |
| Color | Blue |
| Operating Temperature | -40°C ~ 115°C |
| Contact Mating Finish | Nickel |
| Features | Interlocking (Side) |
Submit your RFQ for OSTTH060160 and get a quote within 24 hours.
