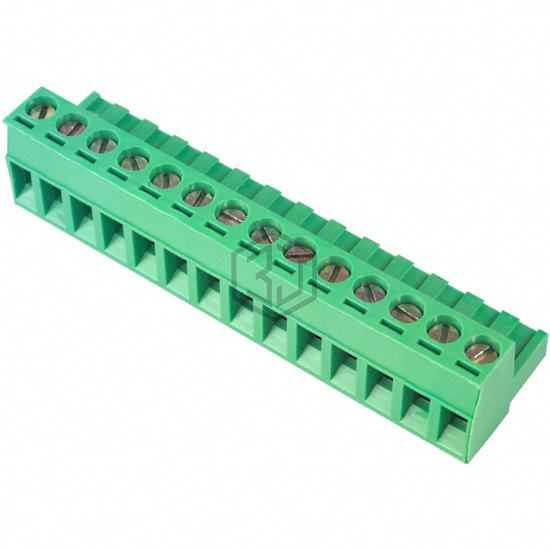

TERM BLOCK PLUG 14POS STR 5MM
ED950/14 is a Terminal Blocks - Headers, Plugs and Sockets manufactured by On Shore Technology Inc.. TERM BLOCK PLUG 14POS STR 5MM. Key specifications: mounting type Free Hanging (In-Line), operating temperature -30°C ~ 105°C, color Green, termination style Screw.
In Stock: 58
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Plug, Female Sockets |
| Number of Positions | 14 |
| Positions Per Level | 14 |
| Number of Levels | 1 |
| Pitch | 0.197" (5.00mm) |
| Header Orientation | - |
| Plug Wire Entry | 180° |
| Termination Style | Screw |
| Mounting Type | Free Hanging (In-Line) |
| Current - IEC | - |
| Voltage - IEC | - |
| Current - UL | 15 A |
| Voltage - UL | 300 V |
| Wire Gauge or Range - AWG | 12-22 AWG |
| Wire Gauge or Range - mm² | 2.5mm² |
| Color | Green |
| Operating Temperature | -30°C ~ 105°C |
| Contact Mating Finish | - |
| Features | Retention Latches (Non-Wire Side) |
Submit your RFQ for ED950/14 and get a quote within 24 hours.
