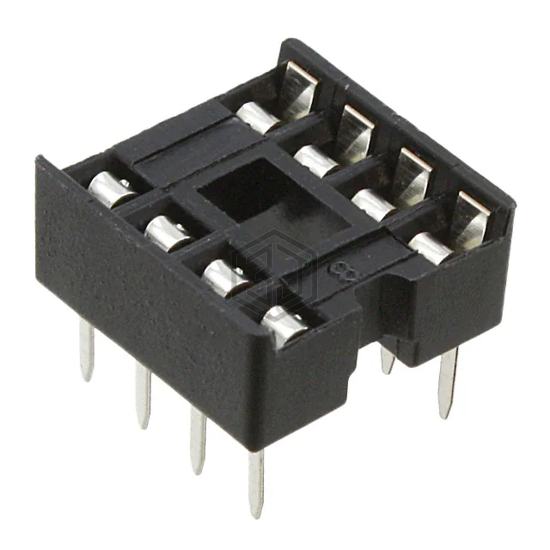

CONN IC DIP SOCKET 8POS TIN
ED08DT is a Sockets for ICs, Transistors manufactured by On Shore Technology Inc.. CONN IC DIP SOCKET 8POS TIN. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 110°C, housing material Polybutylene Terephthalate (PBT), Glass Filled, termination Solder.
In Stock: 13,201
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | DIP, 0.3" (7.62mm) Row Spacing |
| Number of Positions or Pins (Grid) | 8 (2 x 4) |
| Pitch - Mating | 0.100" (2.54mm) |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 60.0µin (1.52µm) |
| Contact Material - Mating | Phosphor Bronze |
| Mounting Type | Through Hole |
| Features | Open Frame |
| Termination | Solder |
| Pitch - Post | 0.100" (2.54mm) |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Post | 60.0µin (1.52µm) |
| Contact Material - Post | Phosphor Bronze |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Operating Temperature | -55°C ~ 110°C |
Submit your RFQ for ED08DT and get a quote within 24 hours.
