PWR SUP 480W 24DC20A EIPIM

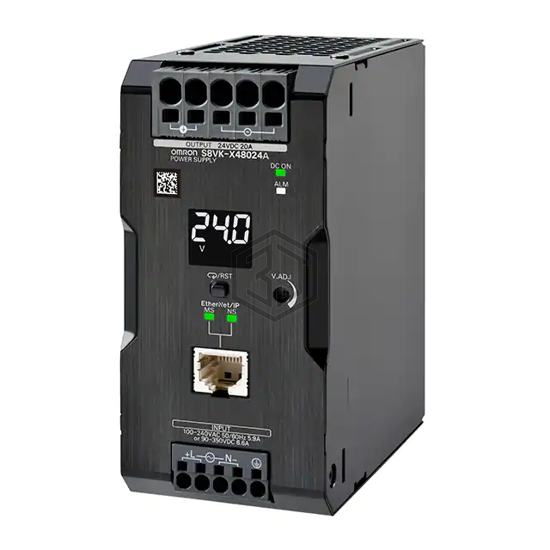

S8VK-X48024A-EIP is a Industrial, DIN Rail Power Supplies manufactured by Omron Automation and Safety. PWR SUP 480W 24DC20A EIPIM. Key specifications: operating temperature -40°C ~ 70°C (With Derating), current - output (max) 20A, size / dimension 4.61" L x 2.36" W x 4.88" H (117.0mm x 60.0mm x 124.0mm), number of outputs 1.
In Stock: 8
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | AC or DC |
| Number of Outputs | 1 |
| AC Voltage - Input | 85 ~ 264 VAC |
| DC Voltage - Input (Min) | 90V |
| DC Voltage - Input (Max) | 350V |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 20A |
| Power (Watts) | 480W |
| Voltage - Isolation | 3 kV |
| Applications | ITE (Commercial) |
| Efficiency | 94% |
| Operating Temperature | -40°C ~ 70°C (With Derating) |
| Features | Adjustable Output, IP20, Universal Input |
| Size / Dimension | 4.61" L x 2.36" W x 4.88" H (117.0mm x 60.0mm x 124.0mm) |
| Approval Agency | CE, cURus, EAC, KC, RCM, TUV, UL |
| Standard Number | - |
Submit your RFQ for S8VK-X48024A-EIP and get a quote within 24 hours.
