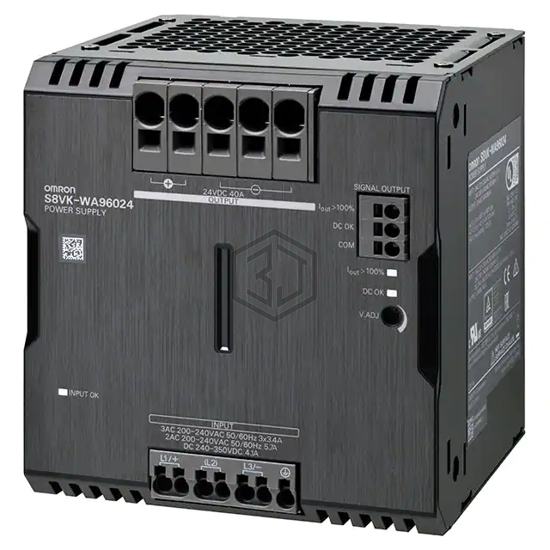

3PHS 200V PWR SUP 40A 24VDC
S8VK-WA96024 is a Industrial, DIN Rail Power Supplies manufactured by Omron Automation and Safety. 3PHS 200V PWR SUP 40A 24VDC. Key specifications: operating temperature -40°C ~ 70°C (With Derating), current - output (max) 40A, size / dimension 4.39" L x 4.65" W x 4.88" H (111.4mm x 118.0mm x 124.0mm), number of outputs 1.
In Stock: 7,913
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | AC or DC |
| Number of Outputs | 1 |
| AC Voltage - Input | 170 ~ 264 VAC, 265 ~ 300 VAC (3 Phase) |
| DC Voltage - Input (Min) | 240V |
| DC Voltage - Input (Max) | 350V |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 40A |
| Power (Watts) | 960W |
| Voltage - Isolation | 3 kV |
| Applications | ITE (Commercial) |
| Efficiency | 95% |
| Operating Temperature | -40°C ~ 70°C (With Derating) |
| Features | Adjustable Output, IP20 |
| Size / Dimension | 4.39" L x 4.65" W x 4.88" H (111.4mm x 118.0mm x 124.0mm) |
| Approval Agency | CE, cURus, RCM, TUV, UL |
| Standard Number | - |
Submit your RFQ for S8VK-WA96024 and get a quote within 24 hours.
