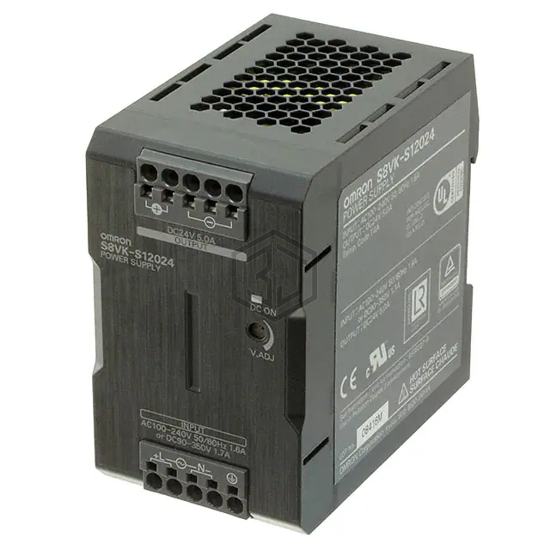

AC DC CONVERTER 24V 120W
S8VK-S12024 is a Industrial, DIN Rail Power Supplies manufactured by Omron Automation and Safety. AC DC CONVERTER 24V 120W. Key specifications: operating temperature -40°C ~ 70°C (With Derating), current - output (max) 5A, size / dimension 3.54" L x 2.17" W x 3.54" H (90.0mm x 55.0mm x 90.0mm), number of outputs 1.
In Stock: 3
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | AC or DC |
| Number of Outputs | 1 |
| AC Voltage - Input | 85 ~ 264 VAC |
| DC Voltage - Input (Min) | 90V |
| DC Voltage - Input (Max) | 350V |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 5A |
| Power (Watts) | 120W |
| Voltage - Isolation | 3 kV |
| Applications | ITE (Commercial) |
| Efficiency | 92% |
| Operating Temperature | -40°C ~ 70°C (With Derating) |
| Features | Adjustable Output, Load Sharing, Universal Input |
| Size / Dimension | 3.54" L x 2.17" W x 3.54" H (90.0mm x 55.0mm x 90.0mm) |
| Approval Agency | CE, cURus, TUV |
| Standard Number | - |
