AC/DC CONVERTER 24V 60W

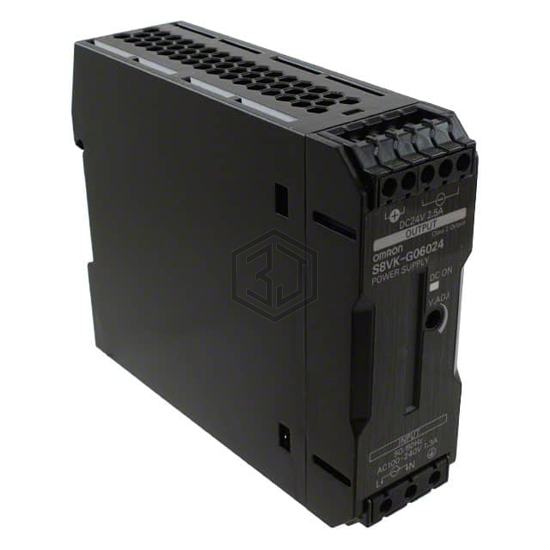

S8VK-G06024 is a Industrial, DIN Rail Power Supplies manufactured by Omron Automation and Safety. AC/DC CONVERTER 24V 60W. Key specifications: operating temperature -40°C ~ 75°C (With Derating), current - output (max) 2.5A, size / dimension 4.33" L x 1.26" W x 3.54" H (110.0mm x 32.0mm x 90.0mm), number of outputs 1.
In Stock: 35
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | AC |
| Number of Outputs | 1 |
| AC Voltage - Input | 85 ~ 264 VAC |
| DC Voltage - Input (Min) | - |
| DC Voltage - Input (Max) | - |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 2.5A |
| Power (Watts) | 60W |
| Voltage - Isolation | 3 kV |
| Applications | ITE (Commercial) |
| Efficiency | 88% |
| Operating Temperature | -40°C ~ 75°C (With Derating) |
| Features | Adjustable Output, Load Sharing, Universal Input |
| Size / Dimension | 4.33" L x 1.26" W x 3.54" H (110.0mm x 32.0mm x 90.0mm) |
| Approval Agency | CE, cULus, cURus, VDE |
| Standard Number | - |
Submit your RFQ for S8VK-G06024 and get a quote within 24 hours.
