AC/DC CONVERTER 5V 25W

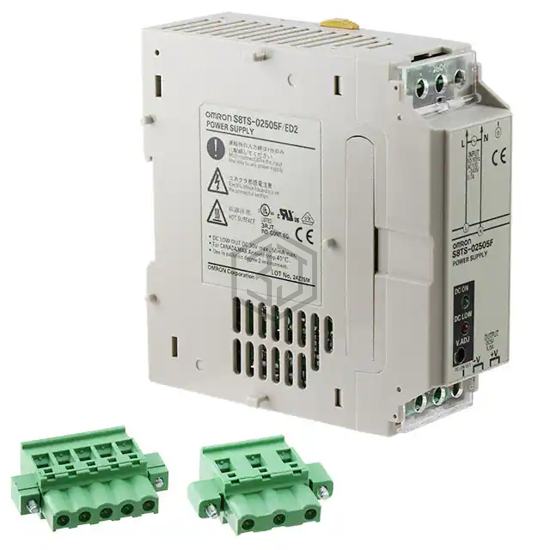

S8TS-02505F is a Industrial, DIN Rail Power Supplies manufactured by Omron Automation and Safety. AC/DC CONVERTER 5V 25W. Key specifications: operating temperature -10°C ~ 55°C (With Derating), current - output (max) 5A, size / dimension 4.72" L x 1.69" W x 4.72" H (120.0mm x 43.0mm x 120.0mm), number of outputs 1.
In Stock: 1
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | AC |
| Number of Outputs | 1 |
| AC Voltage - Input | 85 ~ 264 VAC |
| DC Voltage - Input (Min) | - |
| DC Voltage - Input (Max) | - |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 5A |
| Power (Watts) | 25W |
| Voltage - Isolation | 3 kV |
| Applications | ITE (Commercial) |
| Efficiency | 73% |
| Operating Temperature | -10°C ~ 55°C (With Derating) |
| Features | Adjustable Output, Universal Input |
| Size / Dimension | 4.72" L x 1.69" W x 4.72" H (120.0mm x 43.0mm x 120.0mm) |
| Approval Agency | CE, cULus, cURus, VDE |
| Standard Number | - |
