AC/DC CONVERTER 15V 105W

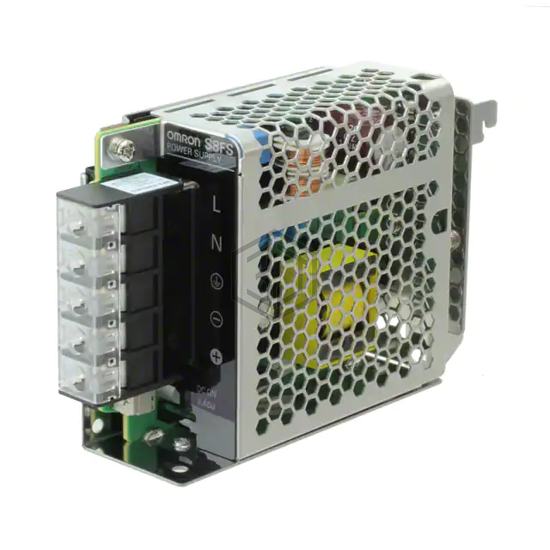

S8FS-G10015CD is a Industrial, DIN Rail Power Supplies manufactured by Omron Automation and Safety. AC/DC CONVERTER 15V 105W. Key specifications: operating temperature -20°C ~ 70°C (With Derating), current - output (max) 7A, size / dimension 5.08" L x 1.54" W x 3.82" H (129.0mm x 39.2mm x 97.0mm), number of outputs 1.
In Stock: 7,182
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | AC or DC |
| Number of Outputs | 1 |
| AC Voltage - Input | 85 ~ 264 VAC |
| DC Voltage - Input (Min) | 120V |
| DC Voltage - Input (Max) | 370V |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 7A |
| Power (Watts) | 105W |
| Voltage - Isolation | 3 kV |
| Applications | Industrial, ITE (Commercial) |
| Efficiency | 87% |
| Operating Temperature | -20°C ~ 70°C (With Derating) |
| Features | Adjustable Output, Universal Input |
| Size / Dimension | 5.08" L x 1.54" W x 3.82" H (129.0mm x 39.2mm x 97.0mm) |
| Approval Agency | CE, cURus, TUV, UL |
| Standard Number | - |
