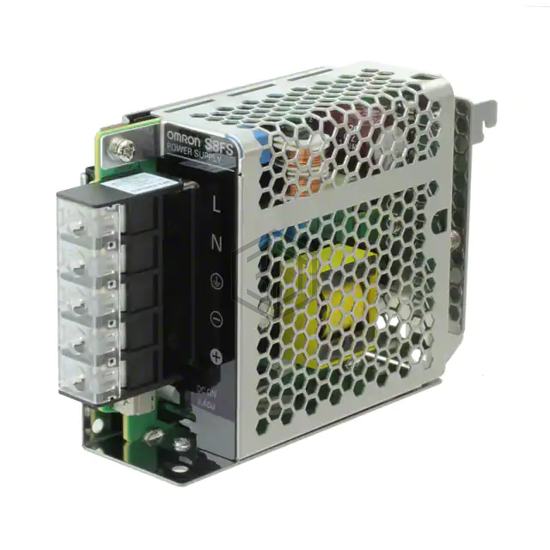

AC/DC CONVERTER 24V 30W
S8FS-G03024CD is a Industrial, DIN Rail Power Supplies manufactured by Omron Automation and Safety. AC/DC CONVERTER 24V 30W. Key specifications: operating temperature -20°C ~ 70°C (With Derating), current - output (max) 1.5A, size / dimension 3.90" L x 1.43" W x 3.23" H (99.0mm x 36.2mm x 82.0mm), number of outputs 1.
In Stock: 41
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | AC |
| Number of Outputs | 1 |
| AC Voltage - Input | 85 ~ 264 VAC |
| DC Voltage - Input (Min) | - |
| DC Voltage - Input (Max) | - |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 1.5A |
| Power (Watts) | 30W |
| Voltage - Isolation | 3 kV |
| Applications | ITE (Commercial) |
| Efficiency | 89% |
| Operating Temperature | -20°C ~ 70°C (With Derating) |
| Features | Adjustable Output, Universal Input |
| Size / Dimension | 3.90" L x 1.43" W x 3.23" H (99.0mm x 36.2mm x 82.0mm) |
| Approval Agency | CE, cURus, TUV, UL |
| Standard Number | - |
Submit your RFQ for S8FS-G03024CD and get a quote within 24 hours.
