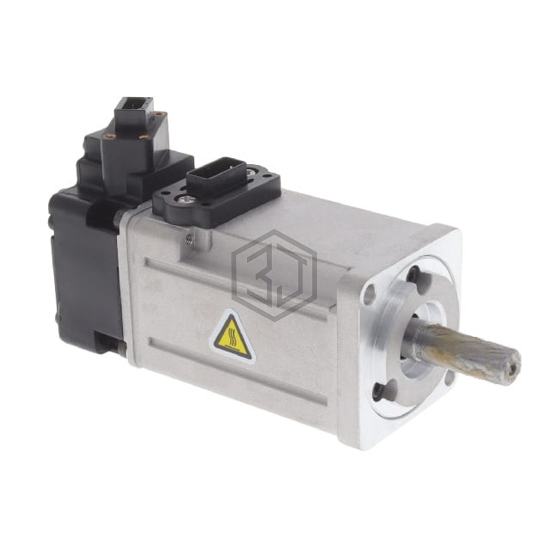

SERVOMOTOR 3000 RPM 230V
R88M-K10030H is a Motors - AC, DC manufactured by Omron Automation and Safety. SERVOMOTOR 3000 RPM 230V. Key specifications: operating temperature 0°C ~ 40°C, voltage - rated 230VAC, size / dimension Square - 1.575" x 1.575" (40.00mm x 40.00mm), termination style Connector.
In Stock: 1,505
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | AC Motor |
| Function | Servomotor |
| Motor Type | - |
| Voltage - Rated | 230VAC |
| RPM | 3000 RPM |
| Torque - Rated (oz-in / mNm) | 45.32 / 320 |
| Power - Rated | 100W |
| Encoder Type | Incremental |
| Size / Dimension | Square - 1.575" x 1.575" (40.00mm x 40.00mm) |
| Diameter - Shaft | 0.315" (8.00mm) |
| Length - Shaft and Bearing | 0.984" (25.00mm) |
| Mounting Hole Spacing | 1.811" (46.00mm) |
| Termination Style | Connector |
| Features | - |
| Gear Reduction Ratio | - |
| Torque - Max Momentary (oz-in / mNm) | 134.5 / 950 |
| Operating Temperature | 0°C ~ 40°C |
Submit your RFQ for R88M-K10030H and get a quote within 24 hours.
