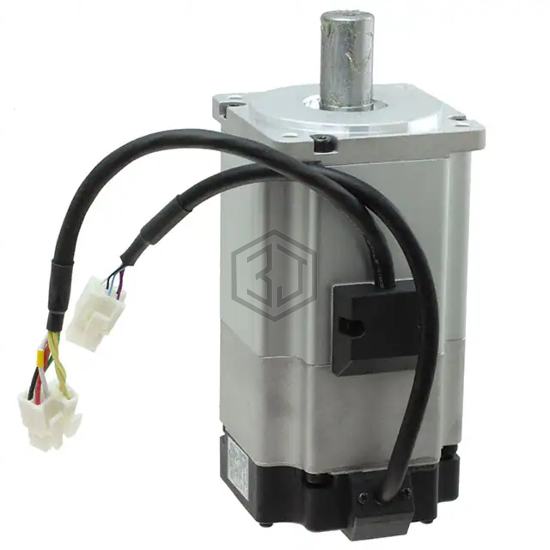

SERVOMOTOR 3000 RPM 200V
R88M-G75030H-BS2 is a Motors - AC, DC manufactured by Omron Automation and Safety. SERVOMOTOR 3000 RPM 200V. Key specifications: operating temperature 0°C ~ 40°C, voltage - rated 200VAC, size / dimension Square - 3.543" x 3.543" (90.00mm x 90.00mm), termination style Cable with Connector.
In Stock: 1
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | AC Motor |
| Function | Servomotor |
| Motor Type | - |
| Voltage - Rated | 200VAC |
| RPM | 3000 RPM |
| Torque - Rated (oz-in / mNm) | 339.9 / 2400 |
| Power - Rated | 750W |
| Encoder Type | Incremental |
| Size / Dimension | Square - 3.543" x 3.543" (90.00mm x 90.00mm) |
| Diameter - Shaft | 0.748" (19.00mm) |
| Length - Shaft and Bearing | 1.378" (35.00mm) |
| Mounting Hole Spacing | 3.543" (90.00mm) |
| Termination Style | Cable with Connector |
| Features | Brake, Key |
| Gear Reduction Ratio | - |
| Torque - Max Momentary (oz-in / mNm) | 998.4 / 7050 |
| Operating Temperature | 0°C ~ 40°C |
Submit your RFQ for R88M-G75030H-BS2 and get a quote within 24 hours.
