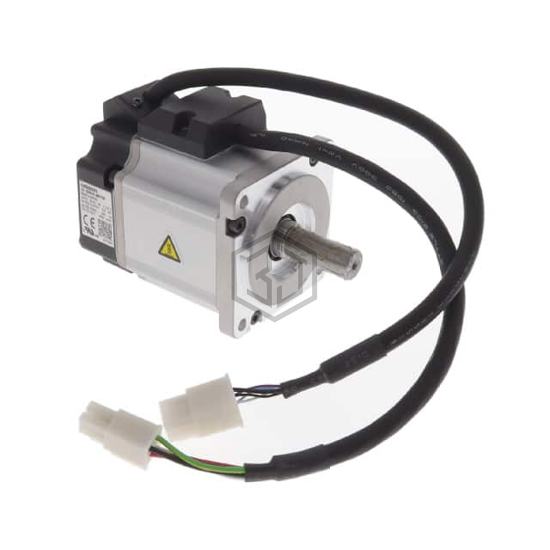

SERVOMOTOR 3000 RPM 100V
R88M-G20030L is a Motors - AC, DC manufactured by Omron Automation and Safety. SERVOMOTOR 3000 RPM 100V. Key specifications: operating temperature 0°C ~ 40°C, voltage - rated 100VAC, size / dimension Square - 2.362" x 2.362" (60.00mm x 60.00mm), termination style Cable with Connector.
In Stock: 2
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | AC Motor |
| Function | Servomotor |
| Motor Type | - |
| Voltage - Rated | 100VAC |
| RPM | 3000 RPM |
| Torque - Rated (oz-in / mNm) | 90.65 / 640 |
| Power - Rated | 200W |
| Encoder Type | Incremental |
| Size / Dimension | Square - 2.362" x 2.362" (60.00mm x 60.00mm) |
| Diameter - Shaft | 0.433" (11.00mm) |
| Length - Shaft and Bearing | 1.181" (30.00mm) |
| Mounting Hole Spacing | 2.756" (70.00mm) |
| Termination Style | Cable with Connector |
| Features | - |
| Gear Reduction Ratio | - |
| Torque - Max Momentary (oz-in / mNm) | 252.1 / 1780 |
| Operating Temperature | 0°C ~ 40°C |
Submit your RFQ for R88M-G20030L and get a quote within 24 hours.
