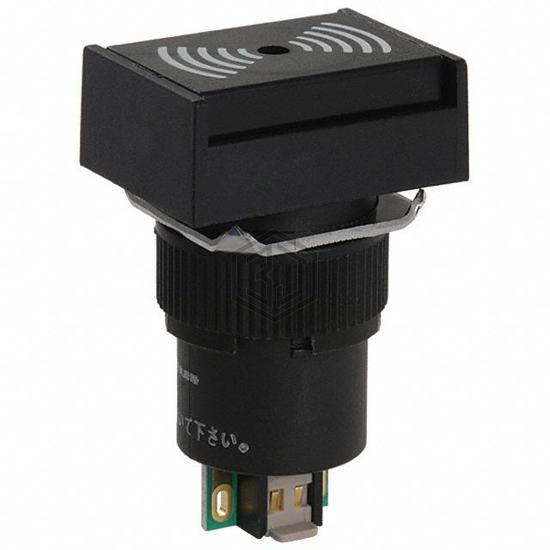

BUZZER PIEZO 26X20MM PNL MNT
M2BJ-BH24E-D is a Alarms, Buzzers, and Sirens manufactured by Omron Automation and Safety. BUZZER PIEZO 26X20MM PNL MNT. Key specifications: mounting type Panel Mount, operating temperature -10°C ~ 55°C, current - supply 50mA, size / dimension 1.024" L x 0.787" W (26.00mm x 20.00mm).
In Stock: 9,802
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | Indicator, Internally Driven |
| Input Type | DC |
| Voltage - Rated | - |
| Voltage Range | 12 ~ 13V |
| Frequency | 3kHz |
| Technology | Piezo |
| Operating Mode | Pin Selectable |
| Duration | Variable |
| Sound Pressure Level (SPL) | 70dB @ 12V, 100cm |
| Current - Supply | 50mA |
| Port Location | Top |
| Operating Temperature | -10°C ~ 55°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Panel Mount |
| Termination | Connector |
| Size / Dimension | 1.024" L x 0.787" W (26.00mm x 20.00mm) |
| Height - Seated (Max) | 1.752" (44.50mm) |
Submit your RFQ for M2BJ-BH24E-D and get a quote within 24 hours.
