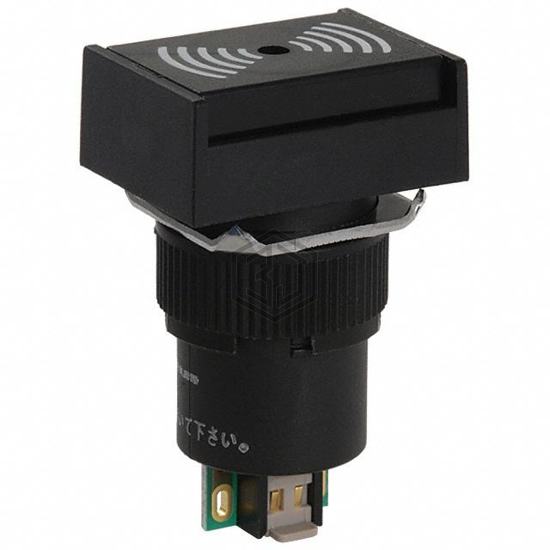

BUZZER PIEZO 6V 24X18MM PNL MNT
M2BJ-B06 is a Alarms, Buzzers, and Sirens manufactured by Omron Automation and Safety. BUZZER PIEZO 6V 24X18MM PNL MNT. Key specifications: mounting type Panel Mount, operating temperature -10°C ~ 55°C, voltage - rated 6 V, current - supply 7mA.
In Stock: 3,019
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | Indicator, Internally Driven |
| Input Type | AC, DC |
| Voltage - Rated | 6 V |
| Voltage Range | - |
| Frequency | 2kHz |
| Technology | Piezo |
| Operating Mode | Pin Selectable |
| Duration | Variable |
| Sound Pressure Level (SPL) | 80dB @ 6V, 100cm |
| Current - Supply | 7mA |
| Port Location | Top |
| Operating Temperature | -10°C ~ 55°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Panel Mount |
| Termination | Connector |
| Size / Dimension | 0.945" L x 0.709" W (24.00mm x 18.00mm) |
| Height - Seated (Max) | 1.496" (38.00mm) |
Submit your RFQ for M2BJ-B06 and get a quote within 24 hours.
