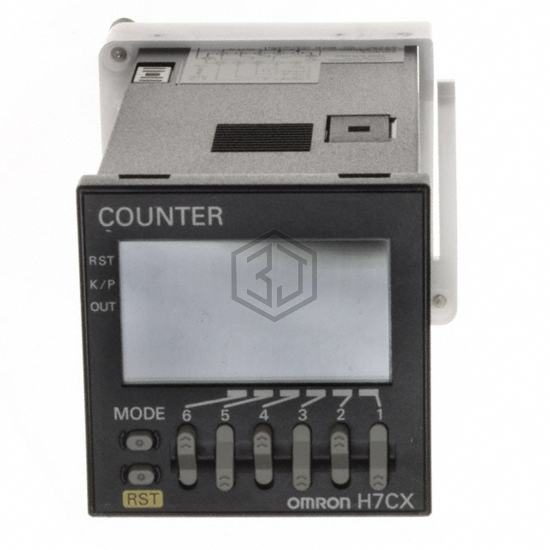

COUNTER LCD 6 CHAR 24V PANEL MT
H7CX-AWD1 DC12-24/AC24 is a Panel Meters - Counters, Hour Meters manufactured by Omron Automation and Safety. COUNTER LCD 6 CHAR 24V PANEL MT. Key specifications: mounting type Panel Mount, voltage - supply 24VAC, 12 ~ 24VDC, termination style Screw Terminal, ingress protection IP66 - Dust Tight, Water Resistant.
In Stock: 1,546
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Batch, Preset, Tachometer, Totalizer |
| Operating Mode | Up, Down, Command, Individual, Quadrature |
| Count Rate | 30Hz, 10kHz |
| Time Format | - |
| Number of Characters Per Row | 6, 6 |
| Display Type | LCD - Dual Color Characters, Backlight |
| Display Characters - Height | 0.354" (9.00mm), 0.236" (6.00mm) |
| Input Type | No Voltage, Voltage |
| Output Type | Relay |
| Voltage - Supply | 24VAC, 12 ~ 24VDC |
| Reset | External, Front Panel, Programmable |
| Panel Cutout Dimensions | Square - 45.00mm x 45.00mm |
| Mounting Type | Panel Mount |
| Termination Style | Screw Terminal |
| Ingress Protection | IP66 - Dust Tight, Water Resistant |
Submit your RFQ for H7CX-AWD1 DC12-24/AC24 and get a quote within 24 hours.
