CNTRL TEMP RLY OUT DIN 24VAC/VDC

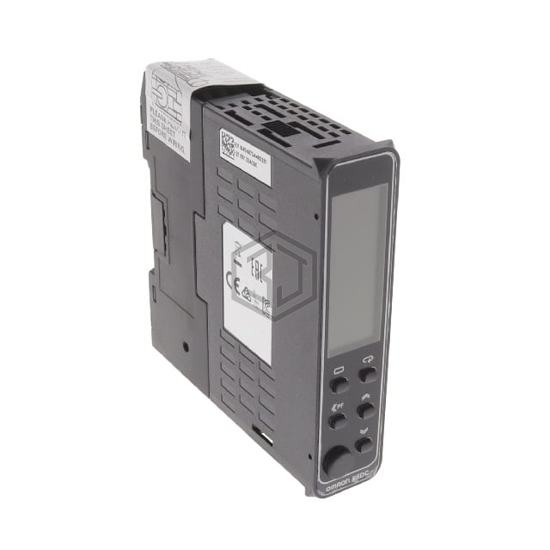

E5DC-RX2DBM-000 is a Controllers - Process, Temperature manufactured by Omron Automation and Safety. CNTRL TEMP RLY OUT DIN 24VAC/VDC. Key specifications: mounting type DIN Rail, voltage - supply 24VAC/DC, termination style Spring Terminal, ingress protection IP20.
In Stock: 8,783
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Process, Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W) |
| Input Range | -200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC |
| Output Type | Relay (3) |
| Control Method | On/Off, Proportional (PID) |
| Communications | - |
| Number of Characters Per Row | 4, 4 |
| Display Type | LCD - Dual Color Characters, Backlight |
| Display Characters - Height | 0.334" (8.50mm), 0.314" (8.00mm) |
| Voltage - Supply | 24VAC/DC |
| Panel Cutout Dimensions | - |
| Mounting Type | DIN Rail |
| Termination Style | Spring Terminal |
| Ingress Protection | IP20 |
| Features | - |
Submit your RFQ for E5DC-RX2DBM-000 and get a quote within 24 hours.
