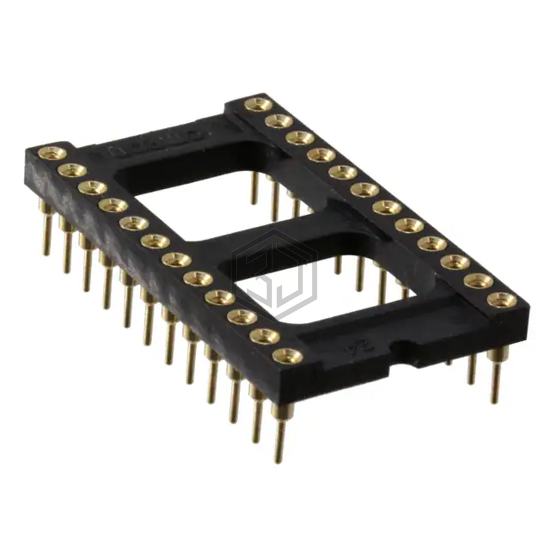

CONN IC DIP SOCKET 32POS GOLD
XR2A3221N is a Sockets for ICs, Transistors manufactured by Omron Electronics Inc-EMC Div. CONN IC DIP SOCKET 32POS GOLD. Key specifications: mounting type Threaded, operating temperature -55°C ~ 125°C, housing material Polybutylene Terephthalate (PBT), Glass Filled, termination Solder.
In Stock: 9,693
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | DIP, 0.6" (15.24mm) Row Spacing |
| Number of Positions or Pins (Grid) | 32 (2 x 16) |
| Pitch - Mating | 0.100" (2.54mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Contact Material - Mating | Beryllium Copper |
| Mounting Type | Threaded |
| Features | Open Frame |
| Termination | Solder |
| Pitch - Post | 0.100" (2.54mm) |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Post | 10.0µin (0.25µm) |
| Contact Material - Post | Brass |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Operating Temperature | -55°C ~ 125°C |
Submit your RFQ for XR2A3221N and get a quote within 24 hours.
