CONN RCPT 16POS 0.079 GOLD PCB

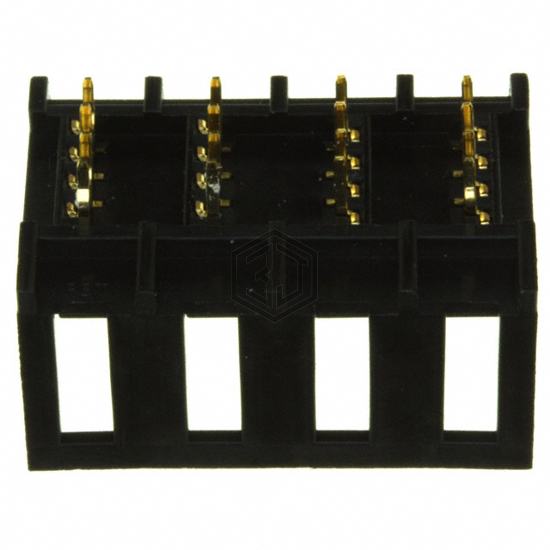

XN2D-4431 is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by Omron Electronics Inc-EMC Div. CONN RCPT 16POS 0.079 GOLD PCB. Key specifications: mounting type Through Hole, operating temperature -30°C ~ 75°C, voltage rating 32VDC, termination Press-Fit, Solder.
In Stock: 24
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Style | Board to Cable/Wire |
| Number of Positions | 16 (4 x 4 Ports) |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.079" (2.00mm) |
| Number of Rows | 4 |
| Row Spacing - Mating | 0.256" (6.50mm) |
| Mounting Type | Through Hole |
| Termination | Press-Fit, Solder |
| Fastening Type | Detent Lock |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 8.00µin (0.203µm) |
| Insulation Color | Black |
| Insulation Height | 0.512" (13.00mm) |
| Contact Length - Post | 0.130" (3.30mm) |
| Operating Temperature | -30°C ~ 75°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Tin |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | - |
| Current Rating (Amps) | - |
| Voltage Rating | 32VDC |
Submit your RFQ for XN2D-4431 and get a quote within 24 hours.
