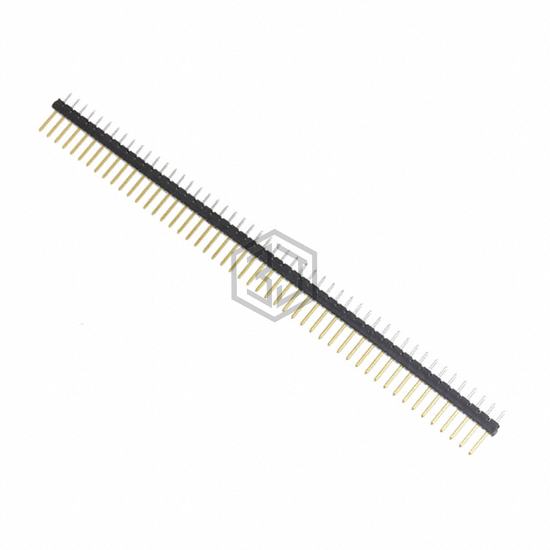

CONN HEADER VERT 50POS 2.54MM
XG8A-5031 is a Rectangular Connectors - Headers, Male Pins manufactured by Omron Electronics Inc-EMC Div. CONN HEADER VERT 50POS 2.54MM. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage rating 300V, contact material Brass, Nickel.
In Stock: 16
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Positions | 50 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Board or Cable |
| Shrouding | Unshrouded |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | 0.236" (6.00mm) |
| Contact Length - Post | 0.110" (2.79mm) |
| Overall Contact Length | 0.453" (11.50mm) |
| Insulation Height | 0.106" (2.70mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 5.90µin (0.150µm) |
| Contact Finish - Post | Tin |
| Contact Material | Brass, Nickel |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Features | - |
| Operating Temperature | -55°C ~ 105°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 3A |
| Voltage Rating | 300V |
Submit your RFQ for XG8A-5031 and get a quote within 24 hours.
