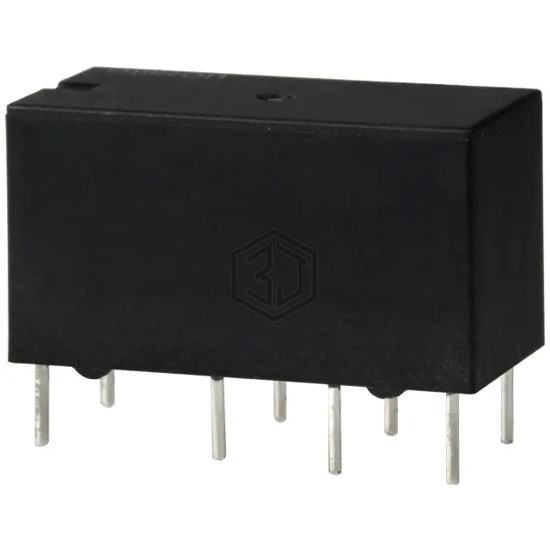

RELAY GEN PURPOSE DPDT 2A 9VDC
G5V-2-DC9 is a Signal Relays, Up to 2 Amps manufactured by Omron Electronics Inc-EMC Div. RELAY GEN PURPOSE DPDT 2A 9VDC. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 65°C, contact material Silver (Ag), Gold (Au), termination style PC Pin.
In Stock: 1,129
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Through Hole |
| Coil Voltage | 9VDC |
| Contact Form | DPDT (2 Form C) |
| Contact Rating (Current) | 2 A |
| Switching Voltage | 125VAC, 125VDC - Max |
| Coil Current | 55.6 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin |
| Seal Rating | Sealed - Fully |
| Coil Insulation | - |
| Must Operate Voltage | 6.75 VDC |
| Must Release Voltage | 0.45 VDC |
| Operate Time | 7 ms |
| Release Time | 3 ms |
| Operating Temperature | -25°C ~ 65°C |
| Contact Material | Silver (Ag), Gold (Au) |
| Relay Type | General Purpose |
Submit your RFQ for G5V-2-DC9 and get a quote within 24 hours.
