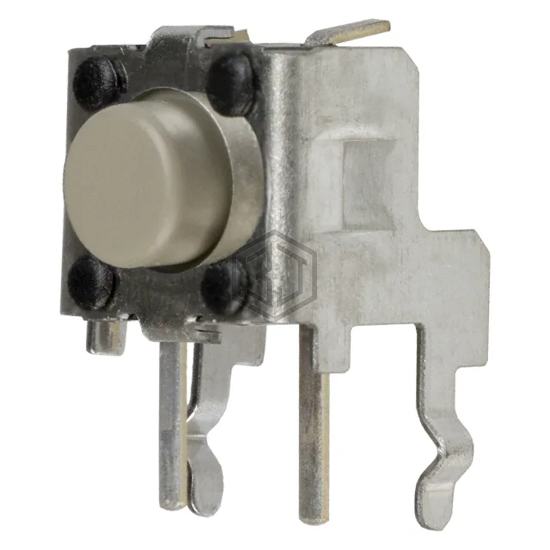

SWITCH TACTILE SPST-NO 0.05A 24V
B3F-3122 is a Tactile Switches manufactured by Omron Electronics Inc-EMC Div. SWITCH TACTILE SPST-NO 0.05A 24V. Key specifications: mounting type Through Hole, Right Angle, operating temperature -25°C ~ 70°C, termination style PC Pin, circuit SPST-NO.
In Stock: 23,823
| Attribute | Value |
|---|---|
| Product Status | Active |
| Circuit | SPST-NO |
| Switch Function | Off-Mom |
| Contact Rating @ Voltage | 0.05A @ 24VDC |
| Actuator Type | Standard |
| Mounting Type | Through Hole, Right Angle |
| Actuator Height off PCB, Vertical | - |
| Actuator Length, Right Angle | 3.85mm |
| Actuator Orientation | Side Actuated |
| Termination Style | PC Pin |
| Outline | 7.30mm x 6.25mm |
| Illumination | Non-Illuminated |
| Illumination Type, Color | - |
| Illumination Voltage (Nominal) | - |
| Operating Force | 150gf |
| Ingress Protection | - |
| Features | Grounding Pin |
| Operating Temperature | -25°C ~ 70°C |
Submit your RFQ for B3F-3122 and get a quote within 24 hours.
