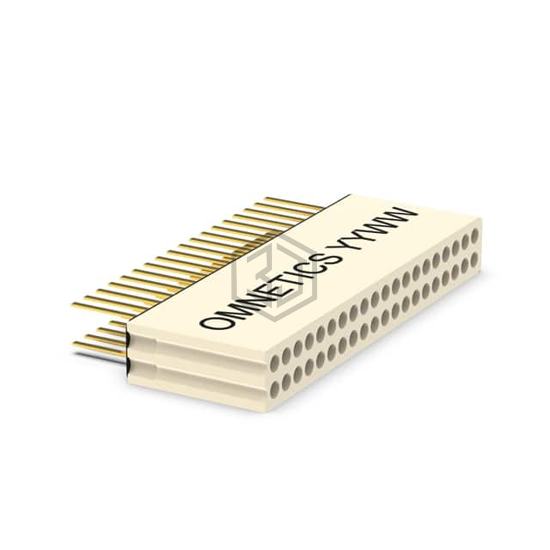

36 POSITION DUAL ROW MALE NANO-M
A79022-001 is a Rectangular Connectors - Headers, Male Pins manufactured by Omnetics. 36 POSITION DUAL ROW MALE NANO-M. Key specifications: mounting type Through Hole, contact material Beryllium Copper, current rating (amps) 1A, termination Solder.
In Stock: 92
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.025" (0.64mm) |
| Number of Positions | 40 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.030" (0.76mm) |
| Number of Positions Loaded | 36 |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | - |
| Contact Length - Post | 0.100" (2.54mm) |
| Overall Contact Length | - |
| Insulation Height | 0.173" (4.40mm) |
| Contact Shape | Circular |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Gold |
| Contact Material | Beryllium Copper |
| Insulation Material | Thermoplastic |
| Features | - |
| Operating Temperature | - |
| Ingress Protection | - |
| Material Flammability Rating | - |
| Insulation Color | Natural |
| Current Rating (Amps) | 1A |
| Voltage Rating | - |
Submit your RFQ for A79022-001 and get a quote within 24 hours.
