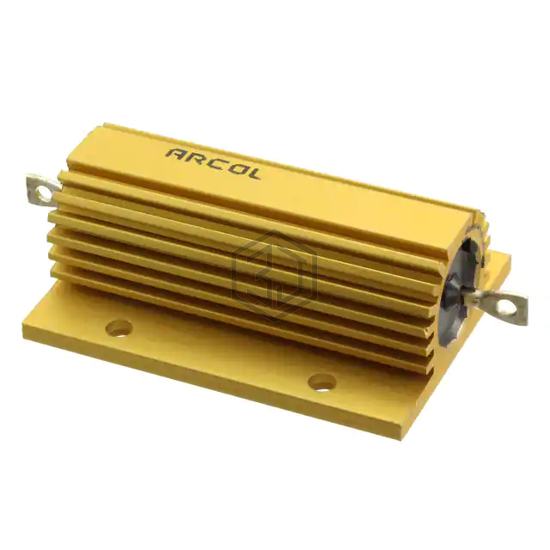

RES CHAS MNT 560 OHM 1% 100W
HS100 560R F is a Chassis Mount Resistors manufactured by Ohmite. RES CHAS MNT 560 OHM 1% 100W. Key specifications: mounting feature Flanges, package / case Axial, Box, size / dimension 2.566" L x 1.075" W (65.20mm x 27.30mm), power (watts) 100W.
In Stock: 5,774
| Attribute | Value |
|---|---|
| Product Status | Active |
| Resistance | 560 Ohms |
| Tolerance | ±1% |
| Power (Watts) | 100W |
| Composition | Wirewound |
| Temperature Coefficient | ±100ppm/°C |
| Operating Temperature | - |
| Features | - |
| Coating, Housing Type | Aluminum |
| Mounting Feature | Flanges |
| Size / Dimension | 2.566" L x 1.075" W (65.20mm x 27.30mm) |
| Height - Seated (Max) | 0.949" (24.10mm) |
| Lead Style | Solder Lugs |
| Package / Case | Axial, Box |
| Failure Rate | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TE100B560RJ | TE Connectivity Passive Product | RES CHAS MNT 560 OHM 5% 100W | 100% | View |
| CJT60560RJJ | TE Connectivity Passive Product | RES CHAS MNT 560 OHM 5% 60W | 67% | View |
| HSC200560RJ | TE Connectivity Passive Product | RES CHAS MNT 560 OHM 5% 200W | 56% | View |
| HS25 560R F | Ohmite | RES CHAS MNT 560 OHM 1% 25W | 56% | View |
| TE1500B560RJ | TE Connectivity Passive Product | RES CHAS MNT 560 OHM 5% 1500W | 56% | View |
| CJT1500560RJJ | TE Connectivity Passive Product | RES CHAS MNT 560 OHM 5% 1500W | 56% | View |
Submit your RFQ for HS100 560R F and get a quote within 24 hours.
