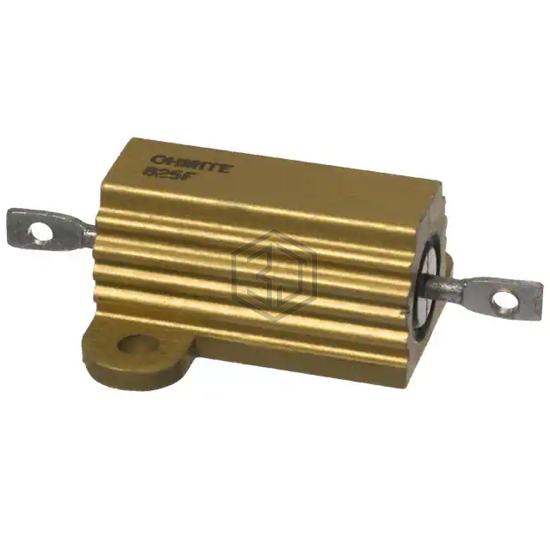

RES CHAS MNT 560 OHM 1% 25W
825F560E is a Chassis Mount Resistors manufactured by Ohmite. RES CHAS MNT 560 OHM 1% 25W. Key specifications: mounting feature Flanges, operating temperature -55°C ~ 275°C, package / case Axial, Box, size / dimension 1.062" L x 1.094" W (26.98mm x 27.79mm).
In Stock: 6,308
| Attribute | Value |
|---|---|
| Product Status | Active |
| Resistance | 560 Ohms |
| Tolerance | ±1% |
| Power (Watts) | 25W |
| Composition | Wirewound |
| Temperature Coefficient | ±20ppm/°C |
| Operating Temperature | -55°C ~ 275°C |
| Features | - |
| Coating, Housing Type | Aluminum |
| Mounting Feature | Flanges |
| Size / Dimension | 1.062" L x 1.094" W (26.98mm x 27.79mm) |
| Height - Seated (Max) | 0.556" (14.12mm) |
| Lead Style | Solder Lugs |
| Package / Case | Axial, Box |
| Failure Rate | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| VE25560RJS | TE Connectivity Passive Product | VE 25W 560R 5% SOLDER LUG | 100% | View |
| RWST30250C5600JB00 | Vishay Sfernice | SFERNICE FIXED RESISTORS | 56% | View |
| RWST25168AN5600JN | Vishay Sfernice | SFERNICE FIXED RESISTORS | 56% | View |
| RWST50373C5600JB01 | Vishay Sfernice | SFERNICE FIXED RESISTORS | 56% | View |
| RWST25138A5600JB00 | Vishay Sfernice | SFERNICE FIXED RESISTORS | 56% | View |
| 850F560E | Ohmite | RES CHAS MNT 560 OHM 1% 50W | 56% | View |
Submit your RFQ for 825F560E and get a quote within 24 hours.
