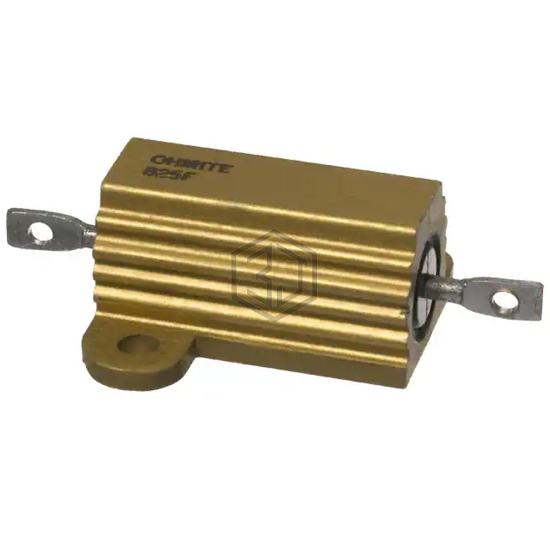

RES CHAS MNT 20 OHM 1% 25W
825F20R is a Chassis Mount Resistors manufactured by Ohmite. RES CHAS MNT 20 OHM 1% 25W. Key specifications: mounting feature Flanges, operating temperature -55°C ~ 275°C, package / case Axial, Box, size / dimension 1.062" L x 1.094" W (26.98mm x 27.79mm).
In Stock: 7,728
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Resistance | 20 Ohms |
| Tolerance | ±1% |
| Power (Watts) | 25W |
| Composition | Wirewound |
| Temperature Coefficient | ±20ppm/°C |
| Operating Temperature | -55°C ~ 275°C |
| Features | - |
| Coating, Housing Type | Aluminum |
| Mounting Feature | Flanges |
| Size / Dimension | 1.062" L x 1.094" W (26.98mm x 27.79mm) |
| Height - Seated (Max) | 0.556" (14.12mm) |
| Lead Style | Solder Lugs |
| Package / Case | Axial, Box |
| Failure Rate | - |
825F20R is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UWP40-20RJ8 | Riedon | CHAS MNT 20 OHM 40W BRKT | 70% | View |
| UWP100-20RJ8 | Riedon | CHAS MNT 20 OHM 100W BRKT | 56% | View |
| NKAL50FB20R0 | Stackpole Electronics Inc | RES CHAS MNT 20 OHM 1% 50W | 56% | View |
| KAL50JB20R0 | Stackpole Electronics Inc | RES CHAS MNT 20 OHM 5% 50W | 56% | View |
| 50WM020 | NTE Electronics, Inc | RES CHAS MNT 20 OHM 1% 50W | 56% | View |
| PFR5K20R0E | Ohmite | RES CHAS MNT 20 OHM 10% 696W | 56% | View |
Submit your RFQ for 825F20R and get a quote within 24 hours.
