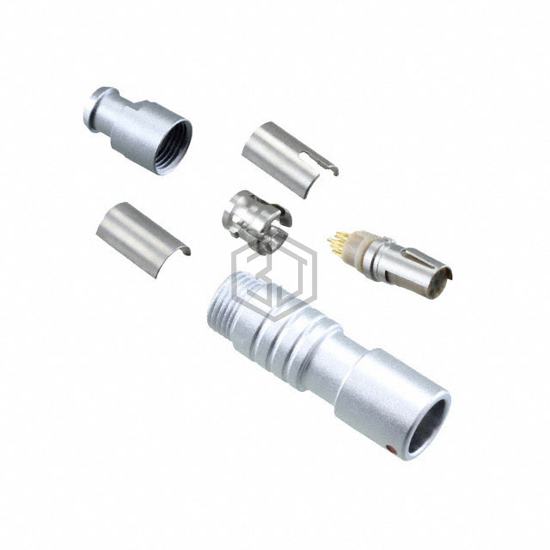

CONN RCPT FMALE 9P GOLD SLDR CUP
K40F1C-P09LCC0-400S is a Circular Connectors manufactured by ODU. CONN RCPT FMALE 9P GOLD SLDR CUP. Key specifications: mounting type Free Hanging (In-Line), operating temperature -40°C ~ 120°C, color Silver, termination Solder Cup.
In Stock: 10
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Receptacle, Female Sockets |
| Number of Positions | 9 |
| Shell Size - Insert | 0 |
| Shell Size, MIL | - |
| Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | - |
| Termination | Solder Cup |
| Fastening Type | Push-Pull |
| Orientation | 1 |
| Primary Material | Metal |
| Shell Material | Brass |
| Shell Finish | Chrome over Nickel |
| Contact Finish - Mating | Gold |
| Color | Silver |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Features | Backshell, Strain Relief |
| Shielding | - |
| Current Rating (Amps) | - |
| Voltage Rating | - |
| Cable Opening | 0.138" ~ 0.157" (3.50mm ~ 4.00mm) |
| Operating Temperature | -40°C ~ 120°C |
Submit your RFQ for K40F1C-P09LCC0-400S and get a quote within 24 hours.
