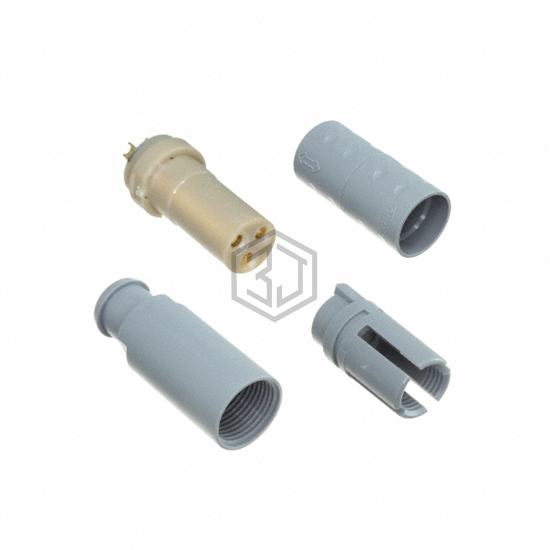

CONN RCPT FMALE 3P GOLD SLDR CUP
K11M07-P03LPH9-3970 is a Circular Connectors manufactured by ODU. CONN RCPT FMALE 3P GOLD SLDR CUP. Key specifications: mounting type Free Hanging (In-Line), operating temperature -50°C ~ 120°C, color Gray, termination Solder Cup.
In Stock: 6
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Receptacle, Female Sockets |
| Number of Positions | 3 |
| Shell Size - Insert | 1 |
| Shell Size, MIL | - |
| Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | - |
| Termination | Solder Cup |
| Fastening Type | Push-Pull |
| Orientation | 0 |
| Primary Material | Plastic |
| Shell Material | Polysulfone (PSU) |
| Shell Finish | - |
| Contact Finish - Mating | Gold |
| Color | Gray |
| Ingress Protection | IP50 - Dust Protected |
| Material Flammability Rating | - |
| Features | Backshell |
| Shielding | Unshielded |
| Current Rating (Amps) | - |
| Voltage Rating | - |
| Cable Opening | 0.106" ~ 0.154" (2.70mm ~ 3.90mm) |
| Operating Temperature | -50°C ~ 120°C |
Submit your RFQ for K11M07-P03LPH9-3970 and get a quote within 24 hours.
