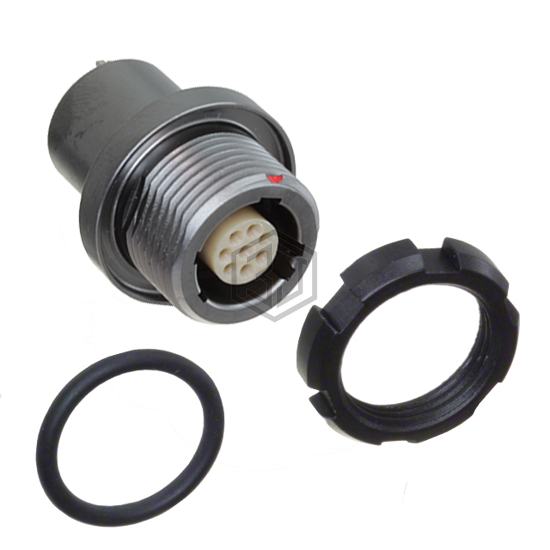

CONN RCPT FMALE 8P GOLD SLDR CUP
G81YAR-P08WFG0-000L is a Circular Connectors manufactured by ODU. CONN RCPT FMALE 8P GOLD SLDR CUP. Key specifications: mounting type Panel Mount, operating temperature -51°C ~ 125°C, voltage rating 333V, color Black.
In Stock: 12
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Receptacle, Female Sockets |
| Number of Positions | 8 |
| Shell Size - Insert | 1 |
| Shell Size, MIL | - |
| Mounting Type | Panel Mount |
| Mounting Feature | Bulkhead - Front Side Nut |
| Termination | Solder Cup |
| Fastening Type | Push-Pull |
| Orientation | A |
| Primary Material | Metal |
| Shell Material | Aluminum |
| Shell Finish | Ruthenium over Electroless Nickel |
| Contact Finish - Mating | Gold |
| Color | Black |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Features | - |
| Shielding | Shielded |
| Current Rating (Amps) | - |
| Voltage Rating | 333V |
| Cable Opening | - |
| Operating Temperature | -51°C ~ 125°C |
Submit your RFQ for G81YAR-P08WFG0-000L and get a quote within 24 hours.
