REC STY G6 SER L SZ 0 2 POS

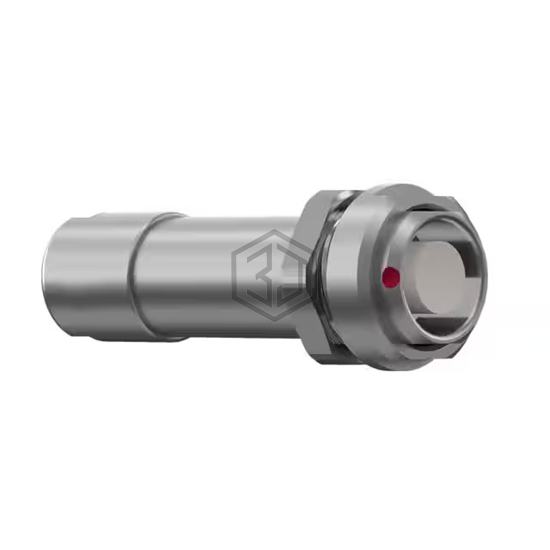

G60L0C-MD2LFG9-5200 is a Circular Connectors manufactured by ODU. REC STY G6 SER L SZ 0 2 POS. Key specifications: mounting type Free Hanging (In-Line); Panel Mount, operating temperature -40°C ~ 120°C, color Silver, termination Solder Cup.
In Stock: 10
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Receptacle, Female Sockets |
| Number of Positions | 2 |
| Shell Size - Insert | 0 |
| Shell Size, MIL | - |
| Mounting Type | Free Hanging (In-Line); Panel Mount |
| Mounting Feature | Bulkhead - Front Side Nut |
| Termination | Solder Cup |
| Fastening Type | Push-Pull, Detent Lock |
| Orientation | 0 |
| Primary Material | Metal |
| Shell Material | Brass |
| Shell Finish | Chrome over Nickel |
| Contact Finish - Mating | Gold |
| Color | Silver |
| Ingress Protection | IP50 - Dust Protected |
| Material Flammability Rating | - |
| Features | Backshell |
| Shielding | Shielded |
| Current Rating (Amps) | - |
| Voltage Rating | - |
| Cable Opening | 0.157" ~ 0.205" (4.00mm ~ 5.20mm) |
| Operating Temperature | -40°C ~ 120°C |
Submit your RFQ for G60L0C-MD2LFG9-5200 and get a quote within 24 hours.
