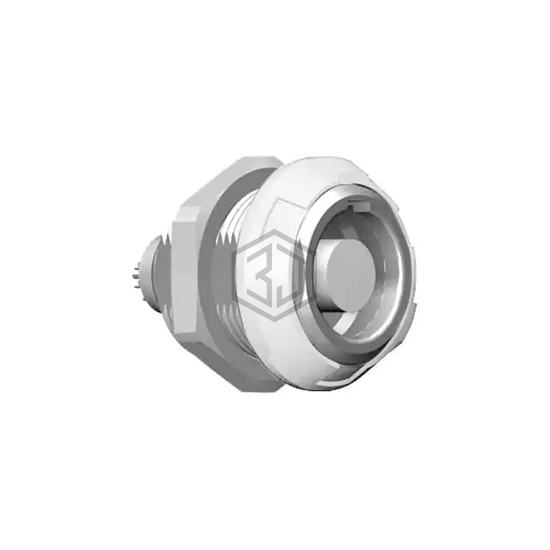

CONN RCPT FMALE 7P GOLD SLDR CUP
G51M07-P07LFD0-0030 is a Circular Connectors manufactured by ODU. CONN RCPT FMALE 7P GOLD SLDR CUP. Key specifications: mounting type Panel Mount, operating temperature -50°C ~ 120°C, color Gray, White, termination Solder Cup.
In Stock: 9,853
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Receptacle, Female Sockets |
| Number of Positions | 7 |
| Shell Size - Insert | 1 |
| Shell Size, MIL | - |
| Mounting Type | Panel Mount |
| Mounting Feature | Bulkhead - Front or Rear Side Nut |
| Termination | Solder Cup |
| Fastening Type | Push-Pull |
| Orientation | 0 |
| Primary Material | Plastic |
| Shell Material | Polysulfone (PSU) |
| Shell Finish | - |
| Contact Finish - Mating | Gold |
| Color | Gray, White |
| Ingress Protection | IP50 - Dust Protected |
| Material Flammability Rating | - |
| Features | - |
| Shielding | Unshielded |
| Current Rating (Amps) | - |
| Voltage Rating | - |
| Cable Opening | - |
| Operating Temperature | -50°C ~ 120°C |
Submit your RFQ for G51M07-P07LFD0-0030 and get a quote within 24 hours.
