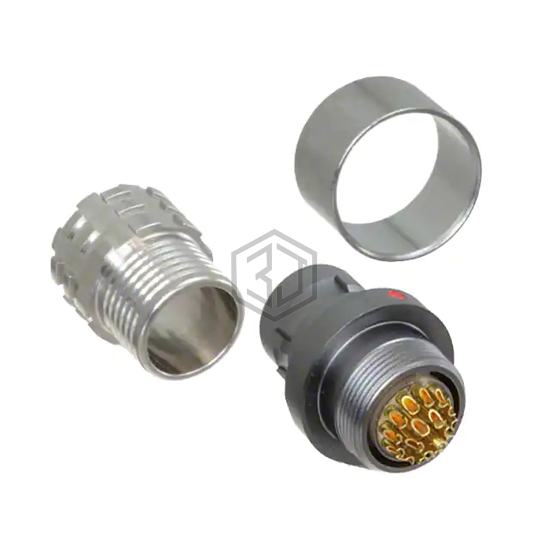

CONN PLUG MALE 19P GOLD SLDR CUP
A12YAR-P19XFG0-0000 is a Circular Connectors manufactured by ODU. CONN PLUG MALE 19P GOLD SLDR CUP. Key specifications: mounting type Free Hanging (In-Line), operating temperature -51°C ~ 125°C, voltage rating 333V, color Black, Silver.
In Stock: 10
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Plug, Male Pins |
| Number of Positions | 19 |
| Shell Size - Insert | 2 |
| Shell Size, MIL | - |
| Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | - |
| Termination | Solder Cup |
| Fastening Type | Push-Pull |
| Orientation | A |
| Primary Material | Metal |
| Shell Material | Aluminum |
| Shell Finish | Ruthenium over Electroless Nickel |
| Contact Finish - Mating | Gold |
| Color | Black, Silver |
| Ingress Protection | IP68/IP69K - Dust Tight, Water Resistant, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Features | Backshell |
| Shielding | Shielded |
| Current Rating (Amps) | - |
| Voltage Rating | 333V |
| Cable Opening | 0.394" (10.00mm) |
| Operating Temperature | -51°C ~ 125°C |
Submit your RFQ for A12YAR-P19XFG0-0000 and get a quote within 24 hours.
