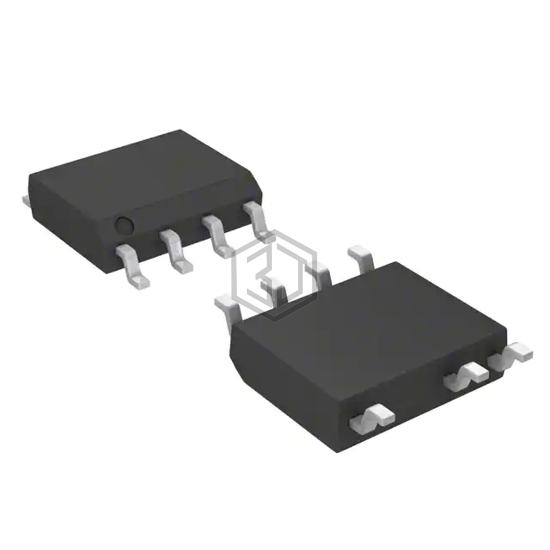

IC OFFLINE SWITCH FLYBACK 7SOIC
TEA1723FT/N1,118 is a PMIC - AC DC Converters, Offline Switchers manufactured by NXP USA Inc.. IC OFFLINE SWITCH FLYBACK 7SOIC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 8.5V ~ 20V, package / case 8-SOIC (0.154", 3.90mm Width), 7 Leads.
In Stock: 3,357
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Isolation | Non-Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 700V |
| Topology | Flyback |
| Voltage - Start Up | 17 V |
| Voltage - Supply (Vcc/Vdd) | 8.5V ~ 20V |
| Duty Cycle | 75% |
| Frequency - Switching | 22.5kHz ~ 50.5kHz |
| Power (Watts) | 11 W |
| Fault Protection | Over Temperature, Over Voltage, Short Circuit |
| Control Features | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Package / Case | 8-SOIC (0.154", 3.90mm Width), 7 Leads |
| Supplier Device Package | 7-SOIC |
| Mounting Type | Surface Mount |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TEA1723DT/N1,118 | NXP USA Inc. | IC OFFLINE SWITCH FLYBACK 7SOIC | 100% | View |
| TEA1723BT/N1,118 | NXP USA Inc. | IC OFFLINE SWITCH FLYBACK 7SOIC | 100% | View |
| TEA1723AT/N1,118 | NXP USA Inc. | IC OFFLINE SWITCH FLYBACK 7SOIC | 100% | View |
| SSC1S311A | Sanken | PWM, 65KHZ, PO=8.5W (730V/12.9) | 93% | View |
| TEA1721BT/N1,118 | NXP USA Inc. | IC OFFLINE SWITCH FLYBACK 7SOIC | 85% | View |
| TEA1721DT/N1,118 | NXP USA Inc. | IC OFFLINE SWITCH FLYBACK 7SOIC | 85% | View |
Submit your RFQ for TEA1723FT/N1,118 and get a quote within 24 hours.
