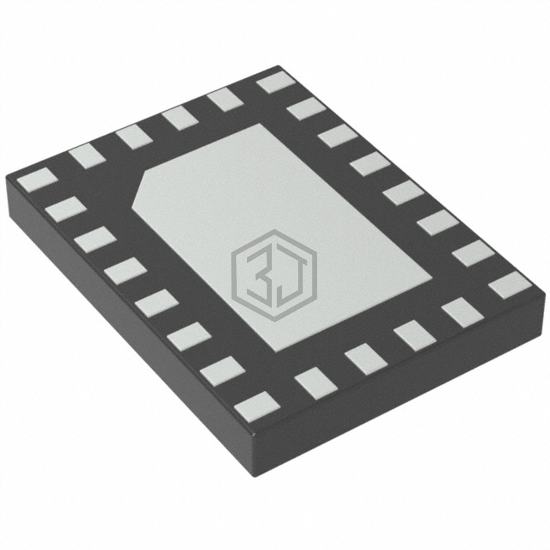

IC REDRIVER USB 3.1 & DP 1.2 QFN
PTN36502AHQX is a Interface - Signal Buffers, Repeaters, Splitters manufactured by NXP USA Inc.. IC REDRIVER USB 3.1 & DP 1.2 QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply 1.7V ~ 1.9V, package / case 24-XFQFN Exposed Pad.
In Stock: 2,870
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Buffer, ReDriver |
| Applications | USB Type C |
| Input | Differential |
| Output | Differential |
| Data Rate (Max) | 5.4Gbps |
| Number of Channels | - |
| Delay Time | 140ps |
| Signal Conditioning | Input Equalization, Output De-Emphasis |
| Capacitance - Input | 10 pF |
| Voltage - Supply | 1.7V ~ 1.9V |
| Current - Supply | 225mA |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 24-XFQFN Exposed Pad |
| Supplier Device Package | 24-HX2QFN (2.4x3.2) |
PTN36502AHQX is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PTN36502HQX | NXP USA Inc. | IC REDRIVER USB 3.1 & DP 1.2 QFN | 100% | View |
| MAX14954ETO+T | Analog Devices Inc./Maxim Integrated | IC REDRIVER PCIE 4CH 42TQFN | 84% | View |
| PI3DPX1203BZHIEX | Diodes Incorporated | ACTIVE DISPLAY V-QFN3590-42 T&R | 72% | View |
| DS80PCI810NJYT | Texas Instruments | IC REDRIVER PCIE 8CHAN 54WQFN | 72% | View |
| DS80PCI810NJYR | Texas Instruments | IC REDRIVER PCIE 8CHAN 54WQFN | 72% | View |
| NB7NPQ1104MMTTWG | onsemi | 3.3 V USB 3.1 GEN-2 10GBP | 65% | View |
Submit your RFQ for PTN36502AHQX and get a quote within 24 hours.
