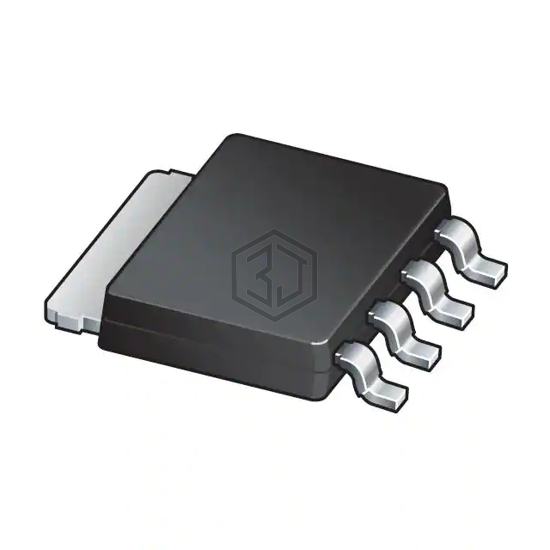

MOSFET N-CH 25V 100A LFPAK56
PSMN3R2-25YLC,115 is a Transistors - FETs, MOSFETs - Single manufactured by NXP USA Inc.. MOSFET N-CH 25V 100A LFPAK56. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case SC-100, SOT-669.
In Stock: 6,704
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 25 V |
| Current - Continuous Drain (Id) @ 25°C | 100A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 3.4mOhm @ 25A, 10V |
| Vgs(th) (Max) @ Id | 1.95V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 30 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1781 pF @ 12 V |
| FET Feature | - |
| Power Dissipation (Max) | 79W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | LFPAK56, Power-SO8 |
| Package / Case | SC-100, SOT-669 |
Submit your RFQ for PSMN3R2-25YLC,115 and get a quote within 24 hours.
