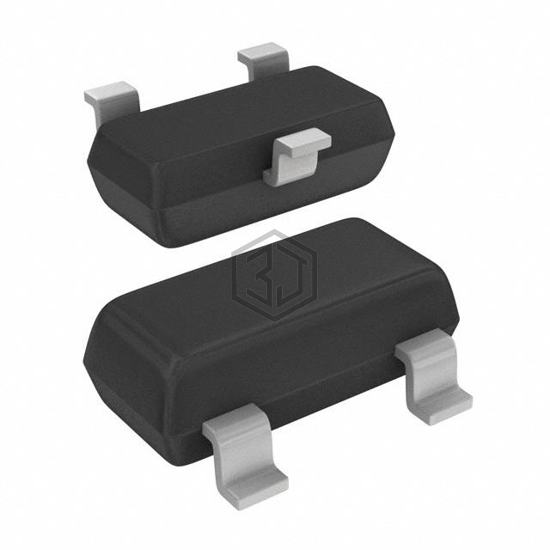

MOSFET N-CH 20V 3.76A TO236AB
PMV56XN,215 is a Transistors - FETs, MOSFETs - Single manufactured by NXP USA Inc.. MOSFET N-CH 20V 3.76A TO236AB. Key specifications: mounting type Surface Mount, operating temperature -65°C ~ 150°C (TJ), package / case TO-236-3, SC-59, SOT-23-3.
In Stock: 56,265
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 3.76A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 4.5V |
| Rds On (Max) @ Id, Vgs | 85mOhm @ 3.6A, 4.5V |
| Vgs(th) (Max) @ Id | 650mV @ 1mA (Min) |
| Gate Charge (Qg) (Max) @ Vgs | 5.4 nC @ 4.5 V |
| Vgs (Max) | ±8V |
| Input Capacitance (Ciss) (Max) @ Vds | 230 pF @ 10 V |
| FET Feature | - |
| Power Dissipation (Max) | 1.92W (Tc) |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | SOT-23 (TO-236AB) |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
Submit your RFQ for PMV56XN,215 and get a quote within 24 hours.
