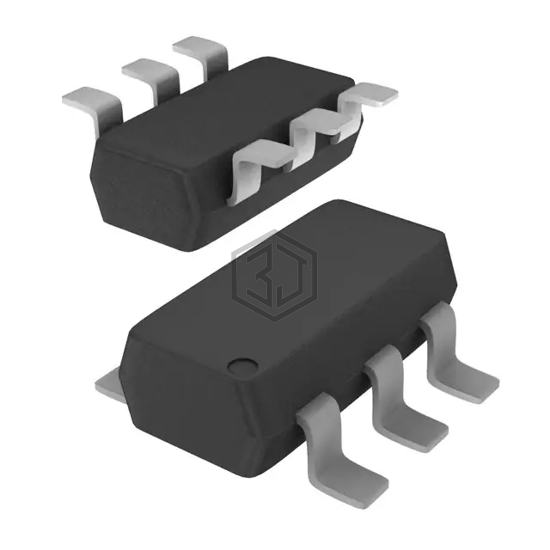

MOSFET N-CH 20V 6.3A 6TSOP
PMN23UN,135 is a Transistors - FETs, MOSFETs - Single manufactured by NXP USA Inc.. MOSFET N-CH 20V 6.3A 6TSOP. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case SC-74, SOT-457.
In Stock: 11,649
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 6.3A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.8V, 4.5V |
| Rds On (Max) @ Id, Vgs | 28mOhm @ 2A, 4.5V |
| Vgs(th) (Max) @ Id | 700mV @ 1mA (Typ) |
| Gate Charge (Qg) (Max) @ Vgs | 10.6 nC @ 4.5 V |
| Vgs (Max) | ±8V |
| Input Capacitance (Ciss) (Max) @ Vds | 740 pF @ 10 V |
| FET Feature | - |
| Power Dissipation (Max) | 1.75W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | SC-74 |
| Package / Case | SC-74, SOT-457 |
Submit your RFQ for PMN23UN,135 and get a quote within 24 hours.
